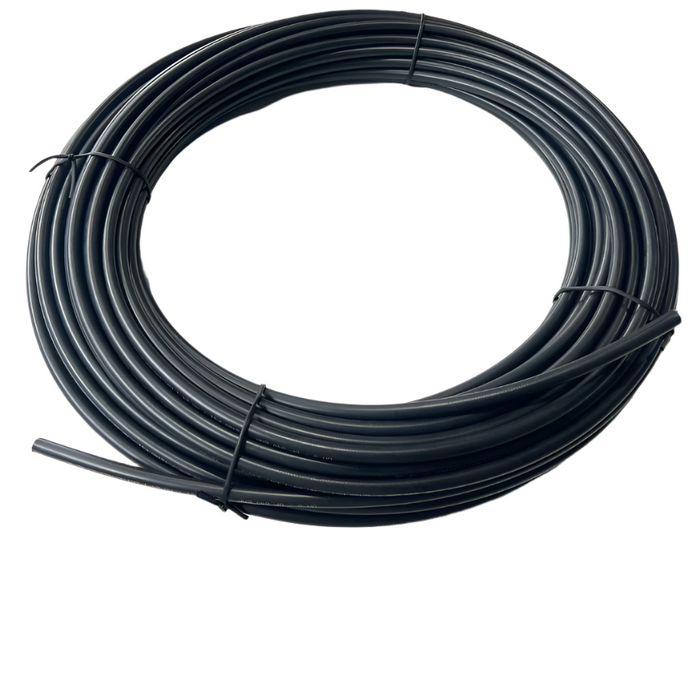

High Pressure Hose - 11.3mm
Original price
$126.31
-
Original price
$1,506.57
Original price
$126.31
$126.31
-
$1,506.57
Current price
$126.31
Fat Adder 11.3mm grease hose is a high-pressure, field-adaptable grease hose rated at 280 bar operating pressure and 840 bar burst pressure. The hose is typically used in remote grease line installations up to 20m, and as feeder and secondary grease hoses in automatic lube systems.
Reusable Hose Stud Fitting with Screw Sleeve and Compression Fitting
Material and Performance
| Material and Performance | ||
|---|---|---|
| Outer Diameter | 11.1mm to 11.5mm | |
| Inner Diameter | 6.2mm to 6.5mm | |
| Inner Tube | Thermoplastic Polyamide 6 | |
| Casing | Thermoplastic polyurethane microbial stabilization | |
| Inner Tube | Casing | |
| Tensile Strength | > 30 N/mm² | > 18 N/mm² (DIN EN ISO 527) |
| Elongation at Break | > 180% | > 380% (DIN EN ISO 527) |
| Hardness, Shore | D 60 ±3 | A 88 ±3 (DIN EN ISO 868) |
| Burst Pressure | > 840 bar at 20°C > 450 bar at 60°C |
(DIN EN ISO 1402) |
| Operating Pressure | Max 280 bar | |
| Operating Temperature | -30°C to +80°C | For mediums with "grease with corrosion protection additives": max 60°C |
| Color | Inner Tube: Natural Casing: Black Reinforcement: White Adhesive: Green - transparent Printing: White |
Visual |
| Bending Radius | > 45mm at +20°C | |
| Lubricant for Grease-Filled Hose | EP Lithium-based multipurpose grease | Note: Can be custom filled with grease |
Part Numbers and Descriptions
| Part Number | Description |
|---|---|
| EHP11.3MM | 1m x 11.3mm high-pressure hose - empty |
| EHP11.3MMGF | 1m x 11.3mm high-pressure hose – grease-filled (NLGI 2) |
| EHP5M | 5m x 11.3mm high-pressure hose - empty |
| EHP5MGF | 5m x 11.3mm high-pressure grease hose – grease-filled (NLGI 2) |
| EPH10M | 10m x 11.3mm high-pressure hose - empty |
| EPH10MGF | 10m x 11.3mm high-pressure grease hose – grease-filled (NLGI 2) |
| EPH50M | 50m x 11.3mm high-pressure hose - empty |
| EPH50MGF | 50m x 11.3mm high-pressure grease hose – grease-filled (NLGI 2) |
| EPH100M | 100m x 11.3mm high-pressure hose - empty |
| EPH100MGF | 100m x 11.3mm high-pressure hose - grease-filled (NLGI 2) |
Installation
- Prior to installation, ensure all points to be connected to the grease anchor block or lube system accept grease from a grease gun. For installation of an automatic lube system, using a lever grease gun with a pressure gauge (Part number HPTASBLY450G) is recommended.
HPTASBLY450G
High-pressure test grease gun 450g with pressure gauge and relief valve - If using a new machine, fill any existing empty cavities with a suitable grease. If using an empty grease line, ensure this is filled with grease. In this case, a grease-filled hose will be more efficient.
- During assembly, cleanliness is important to prevent any ingress of contaminants into the automatic lube system, remote grease line system, or bearing points. Even minor contamination may cause system malfunctions and/or bearing damage.
- All grease tubing must be cut square and clean, ideally with a sharp tube cutter (Part number TC).
TC
Cut 11.3mm grease hose safely, squarely, and cleanly using a handheld tube cutter - The end of the 11.3mm grease hose must be lubricated for the screw sleeves prior to assembly.
- Screw sleeves must be rotated counterclockwise onto the 11.3mm grease hose until they cannot be turned any further, then backed off by half a turn.
- Screw the hose stud all the way into the screw sleeve.
- If using a Reusable Hose Stud Fitting with Screw Sleeve and Compression Fittings, either:
- Install the compression fitting into place by removing the existing grease nipple. Push the hose stud all the way into the compression fitting and tighten the compression nut.
- Push the hose stud all the way into the compression fitting and tighten the compression nut. Loosen by a quarter turn, remove the existing grease nipple, install the compression fitting, then tighten the compression nut.
